20W LU3-20A Laser Module for Ortur Laser Engraver
- Has a power of 20W, engraving 380+ colors on stainless steel, Square-spot 0.08*0.08mm, presenting 256 kinds of gray engraving.
- 20W laser module recommended used with air pump for make the effect better and longer life.
- Applicable with OLM3, OLM3 LE, OLM2 PRO S2 and OLM2 S2 machine.
20W LU3-20A Laser Module for Ortur Laser Engraver
Laser Engraver and Cutter
Breakthrough COS Packaging Technology
Combines 4 diode laser beams to compress a finer beam and powerful energy
Cutting in One Pass
Beams combined & compressed out 20W laser visible real power
15mm Pine Cutting
10mm Plywood Cutting
8mm Black Acrylic Cutting
Rarely Achieved 0.08*0.08mm Square Spot
The ultra-fine compressed light spot achieves top precision, and presents 100% detail for your creative ideas in 256 engraving greyscales
Explore 380+ Colors on Stainless Steel
Different parameters carve out different colors, no longer limited to black and white
Accessory Compatibility
Efficient Integrated Air Assist System
Built-in air tube cooperates with the included 50L air pump to reduce burn marks by 50% , and knob to adjust airflow
01
Double Cooling Fans
With a powerful cooling system, the dual fans reach up to 10,000 rpm, improving the durability of the laser and ensuring a service life of up to 10,000 hours.
02
Airflow Guided Blinds
Air-guided blinds combined with built-in tubes that control the cooling airflow, help reduce dust buildup on the lenses and thus reduce wear and tear.
03
Quick Focus Stick
Equipped with quick focus stick for easy and convenient focus.
04
Laser Filtered Viewable Window
Using solid and durable glass material to make a laser shield, which effectively filters out 97% laser light, giving you a safe and comfortable engraving scene.

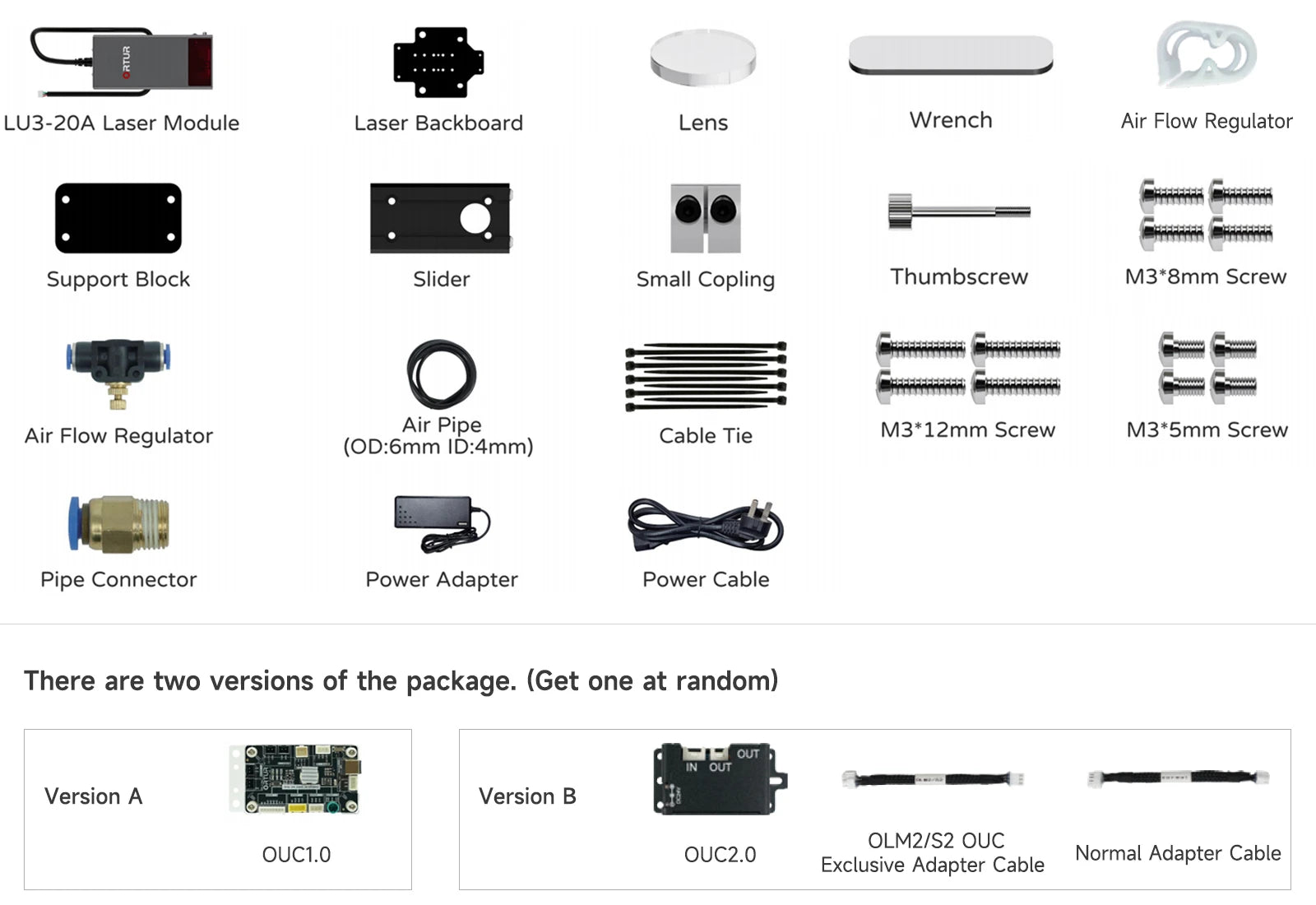

Packing Lists
Product Specification
0.08*0.08mm
0.05*0.1mm
120W
80W
80W
40W
24V 4A
24V 2A
20W
10W
Spatial Compression
Optical Compression
✔
✔
56.5mm
50mm
Manual
Manual
450±5nm
450±5nm
>10,000H
>10,000H
20,000mm/min
20,000mm/min
Every 50 hours
Every 50 hours
WIFI/APP/USB/SD Card
WIFI/APP/USB/SD Card
Cotton wetted with alcohol and wipe off the dust and dirt on the surface of the lens, wait for the alcohol to evaporate
Cotton wetted with alcohol and wipe off the dust and dirt on the surface of the lens, wait for the alcohol to evaporate
